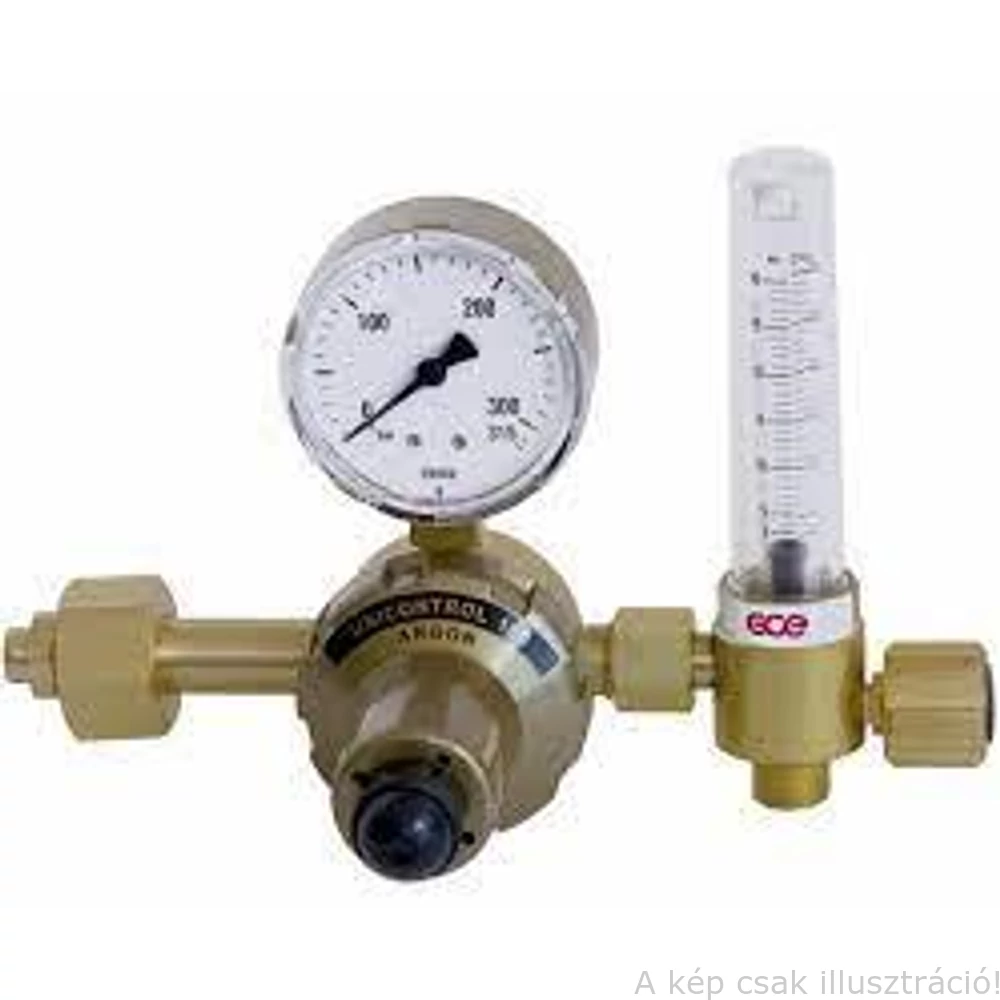

Reduktor Ar/CO2 GCE Basecontrol FLOW Rotacsöves (24-315bar,30ter/perc) W21,8mm GCE 0870359

ld.:
https://www.gcegroup.com/files/pdf-downloads/INDUSTRIAL/Basecontrol_Flow_735100001051_EN.pdf

• Cylinder regulator conforming to ISO 2503
• Safe operation with high compressed gases up to
230bar cylinder fi lling pressure
• Available in following variants:
NOW
- GCE Basecontrol® FLOW without preheater
- GCE Basecontrol® FLOW with preheater (36V, 120W)
IN MIDDLE 2016
- CE marked power Power Transformer
from 220V or 110V to 36V will also be launched
in Middle 2016
• Regulating valve protected against mechanical
particles of size 50µm by inlet fi lter
• Protection of the low pressure part with integrated
pressure relief valve
• Pressure values are shown on the gauges in three
major pressure units scales: bar, kPa, psi
• Flowmeter tube (class 10) showing the value in litres
per minute (0-30 l/min)
• Long operational lifetime and Electrical safety

BODY AND BONNET
The body of the GCE Basecontrol® FLOW is forged from
pressure resistant brass. The channels and faces inside
the body are machined using latest technology of CNC
machines and tools.
The bonnet is Die-casted from the Zn-Al alloy to prepare
optimal space for pressure adjustment system and other
internal components.
Connection between body and bonnet is designed to
give high resistance against external and internal stress.
